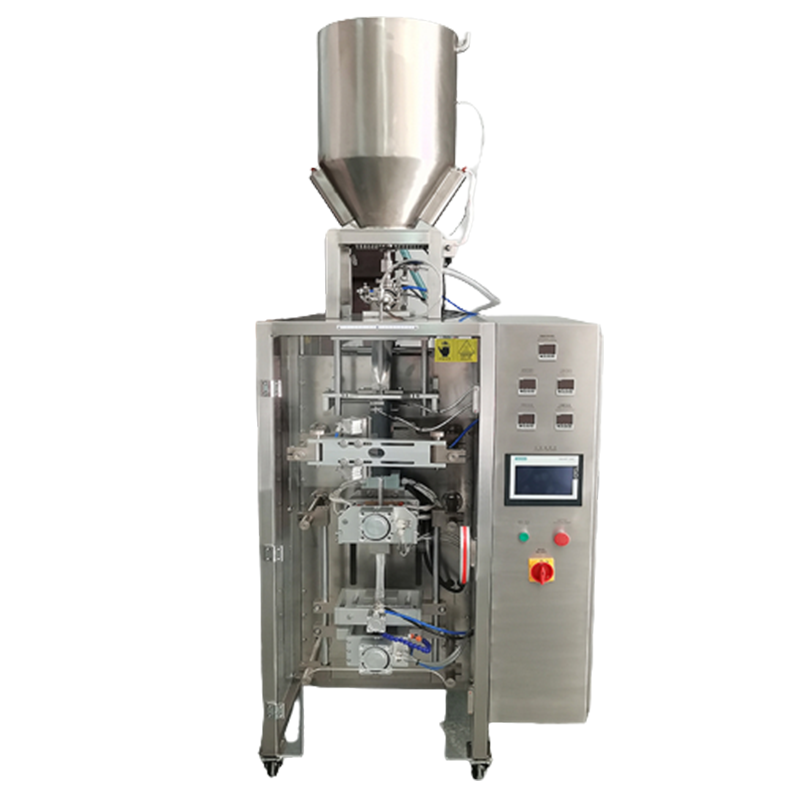

QD-88 Special-shaped bag packing machine
QD-88 异形袋包装机
特 点 Characteristic
１、适用于食品、医药、化工、化妆品行业中液体、酱料等物品的异形袋计量包装。
The machine is suitable for the food, medicine, chemical industry, cosmetics industry of liquids , sauce of Special-shaped bag measurement packing.
２、可自动完成制袋、计量、下料、封合、分切、计数、且可根据客户要求配置打印批号等功能。
All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、触摸屏操作，PLC 控制，伺服电机控制袋长，性能稳定、调整方便、检测准确。智能式温控仪，PID调节，保证将温度的误差范围控制在1℃以内。
The touch screen operation, PLC control, servo motor to control the bag length,stable performance, easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、包装材料：PE复合膜，如：纯铝，镀铝，尼龙等。
Packing material: PE composite film, such as: pure aluminum, aluminum plating, nylon, etc.
封口方式 Sealing Type
背封封口
Back sealing
技术参数
Technical Parameters
计量范围：1 - 20ml
Measuring Scope
制袋尺寸：长（L）：30 - 180 mm
Bag Size：宽（W）：20 - 60 mm
包装速度：20 - 35bags / min
Packing speed
外型尺寸：930 * 1500 * 2400 mm
Dimension ( L* W * H )
整机重量：720 kg
Weight
总功率：220V / 50 - 60HZ / 5.5KW
Total Power
气 源：0.3m³ / min
Gas source
